Maxtor Hard Drive Recovery: How to Recover Data from Maxtor Hard Drives

Have you accidentally deleted important files from your Maxtor hard drive, noticed files disappearing on their own, or found that your external Maxtor drive isn’t showing up in Windows? We’ll cover the most common problems and guide you through practical fixes step by step. By the end of this article, you’ll know everything you need about Maxtor data recovery. Just keep reading.

Maxtor Hard Drive Data Recovery Guide

Here’s a quick guide to nudge you in the right direction. We’ve pulled together the most common issues people face with Maxtor hard drives and what you can do to fix them. Under What You Can Do, you’ll find possible solutions with links to detailed guides to help you take action.

How to Recover Data from Maxtor Hard Drives

To recover data from a Maxtor drive—whether you accidentally deleted a few files, formatted the entire drive, or can’t access it in File Explorer—you’ll need data recovery software. These tools can scan your drive and retrieve all kinds of files: deleted files, hidden files, and existing files that aren’t showing up.

Here are a few recommendations to help with the process:

• If your Maxtor drive isn’t visible in File Explorer, check Disk Management. As long as the drive appears there, data recovery tools can still access and scan it.
  👀

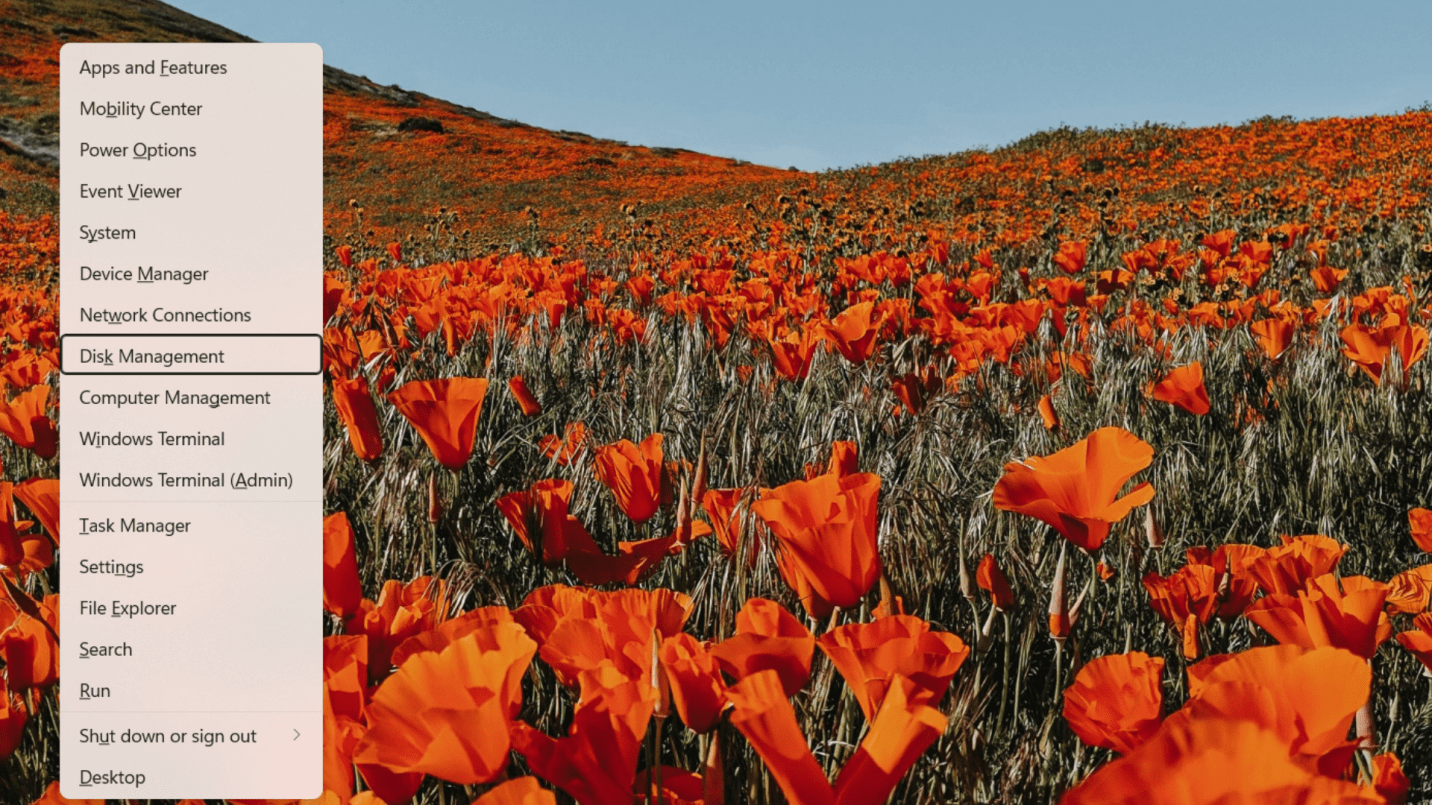

  To check Disk Management, press Win + X and select Disk Management from the menu. Look for your Maxtor drive in the list of connected drives to confirm if it’s recognized by the system.

• If you want to recover deleted or lost files, avoid downloading, copying, or installing anything to the drive. This reduces the risk of overwriting old data with new data, which will make recovery impossible.
• If the drive freezes, shows errors, or seems damaged, create a byte-for-byte image of it. This allows you to scan the image instead of the actual drive to protect the drive from further harm.
• If it’s an external drive make sure you’re using a reliable cable and USB port. A bad connection can cause the drive to disconnect during the recovery process.

For this job, we’d recommend Disk Drill. In our tests, it delivered impressive recovery results and proved to be a reliable tool for hard drives (but not only). It also includes a disk imaging feature, known as a byte-for-byte backup, which you might need if your Maxtor drive is acting up.

The best part? It has a free version that lets you scan and preview files, so you can check if your data is even retrievable. Plus, you can recover up to 500MB without spending a dime.

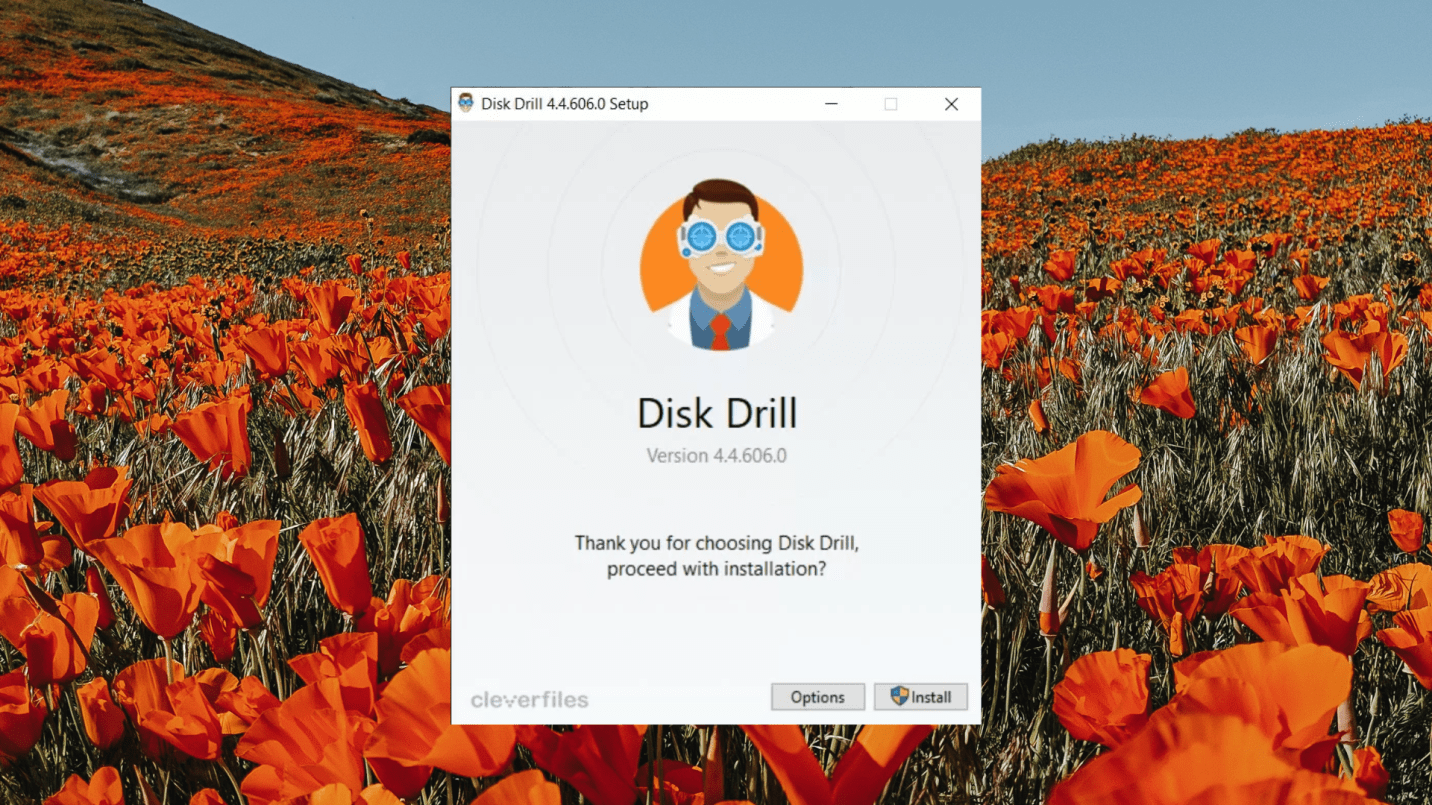

Go to Disk Drill’s official website to download the software. Use the official page to avoid unsafe or modified versions from third-party sites. If possible, do not put Disk Drill on your Maxtor drive. As we mentioned earlier, new data could overwrite the files you’re trying to recover. Install it on a different drive or partition to protect your chances of recovery.

Step #1: Create Byte-for-byte Backup (For Problematic Maxtor Hard Drives)

Here’s a guide on how to create a byte-for-byte backup of your Maxtor drive. Be prepared—you’ll need enough free storage space on a different drive to store the backup. For example, if your Maxtor drive has a 1TB capacity, you’ll need at least 1TB of free space on another drive, plus a little extra room just to be safe.

Here’s how to do it:

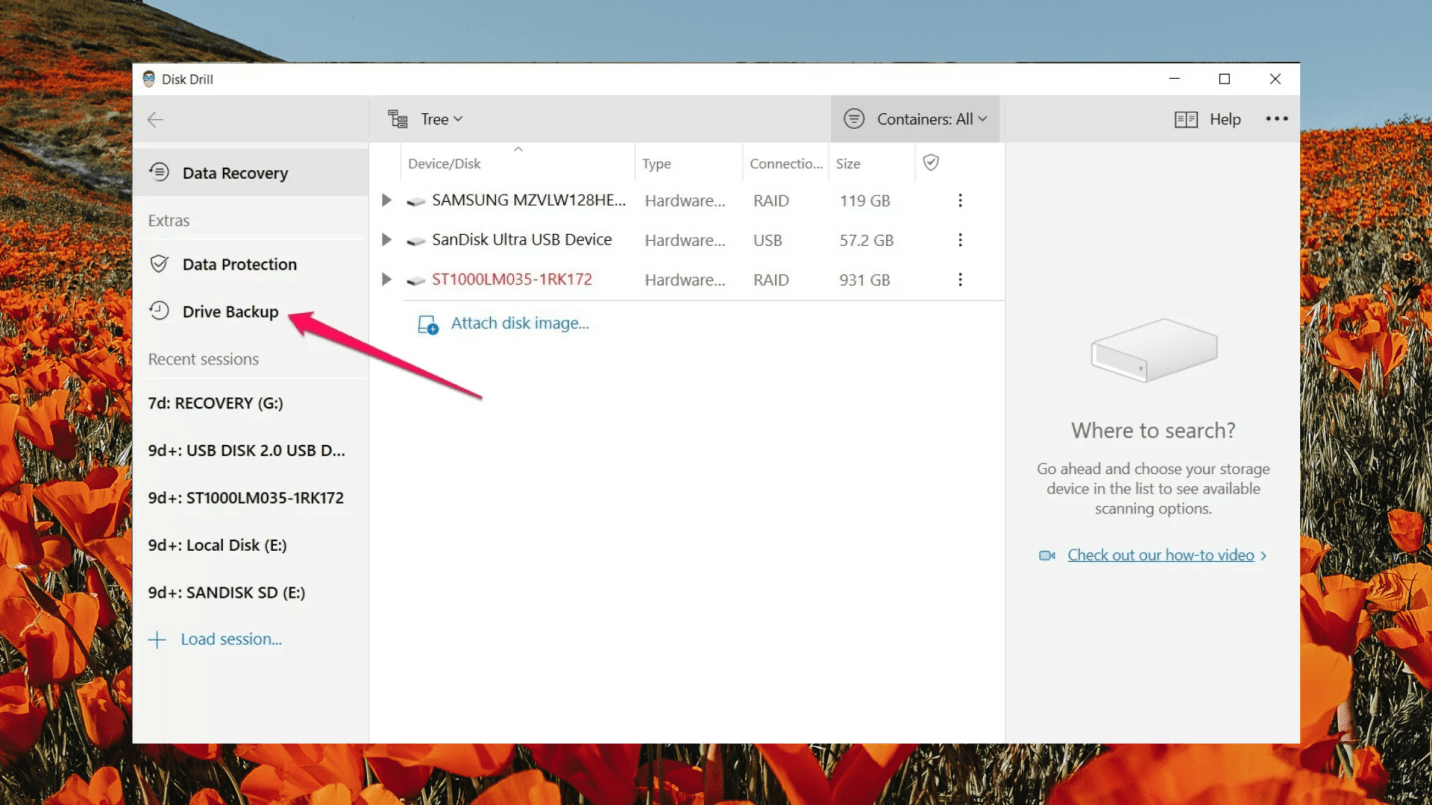

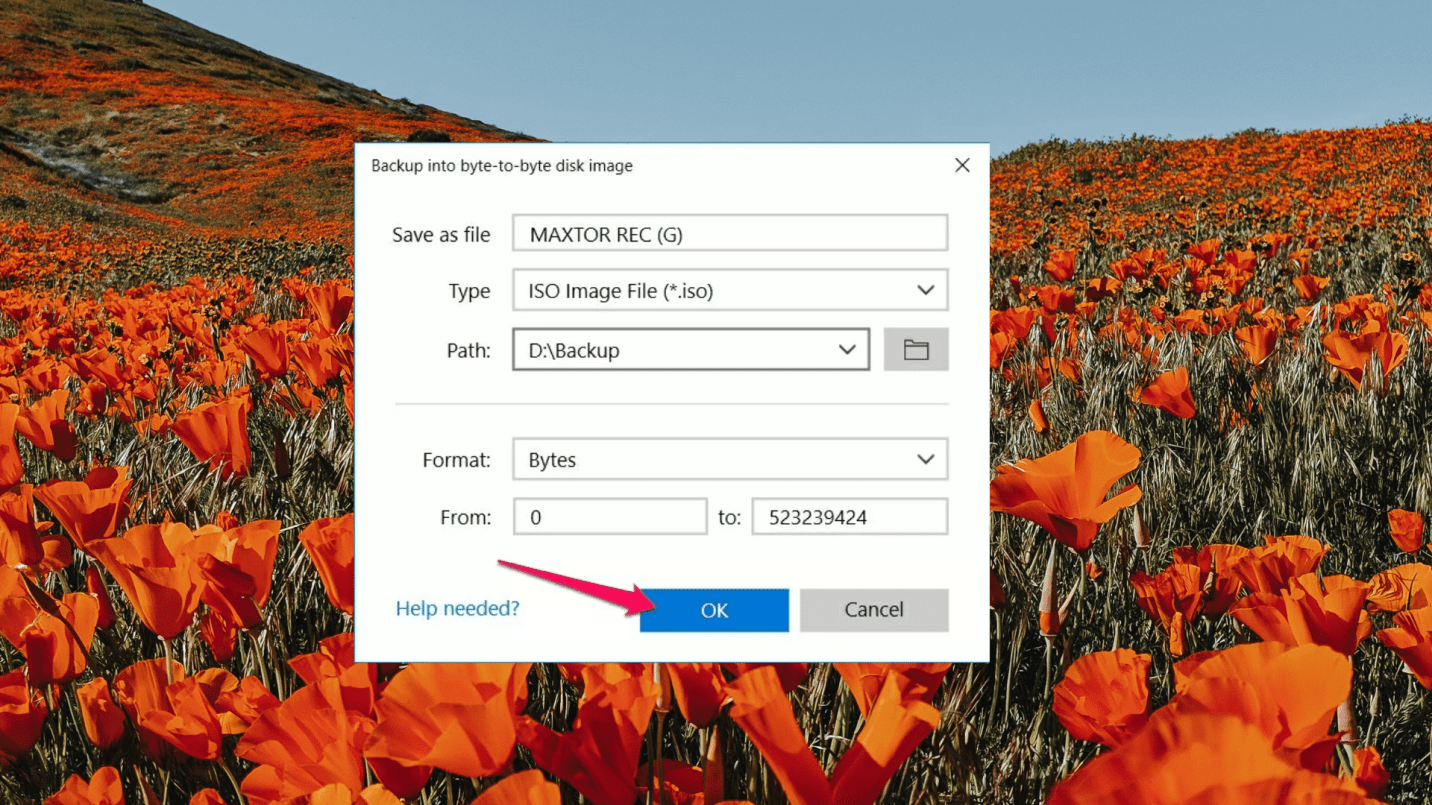

1. Open Disk Drill and navigate to the Byte-to-Byte Backup option in the left-hand menu.

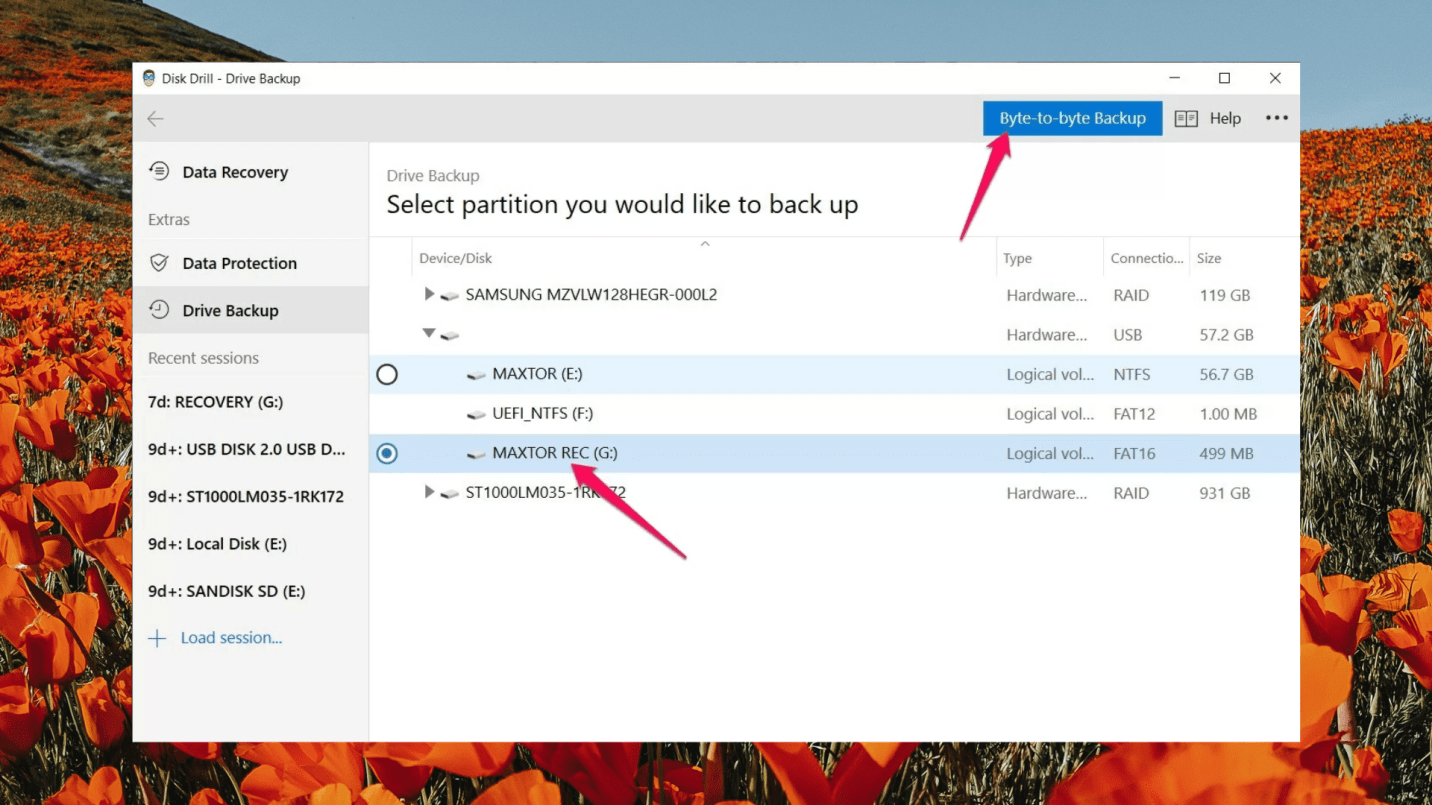

2. Pick your Maxtor drive from the list of connected devices and click on the Byte-to-Byte Backup button.
3. Pick a storage device with enough space for the backup.

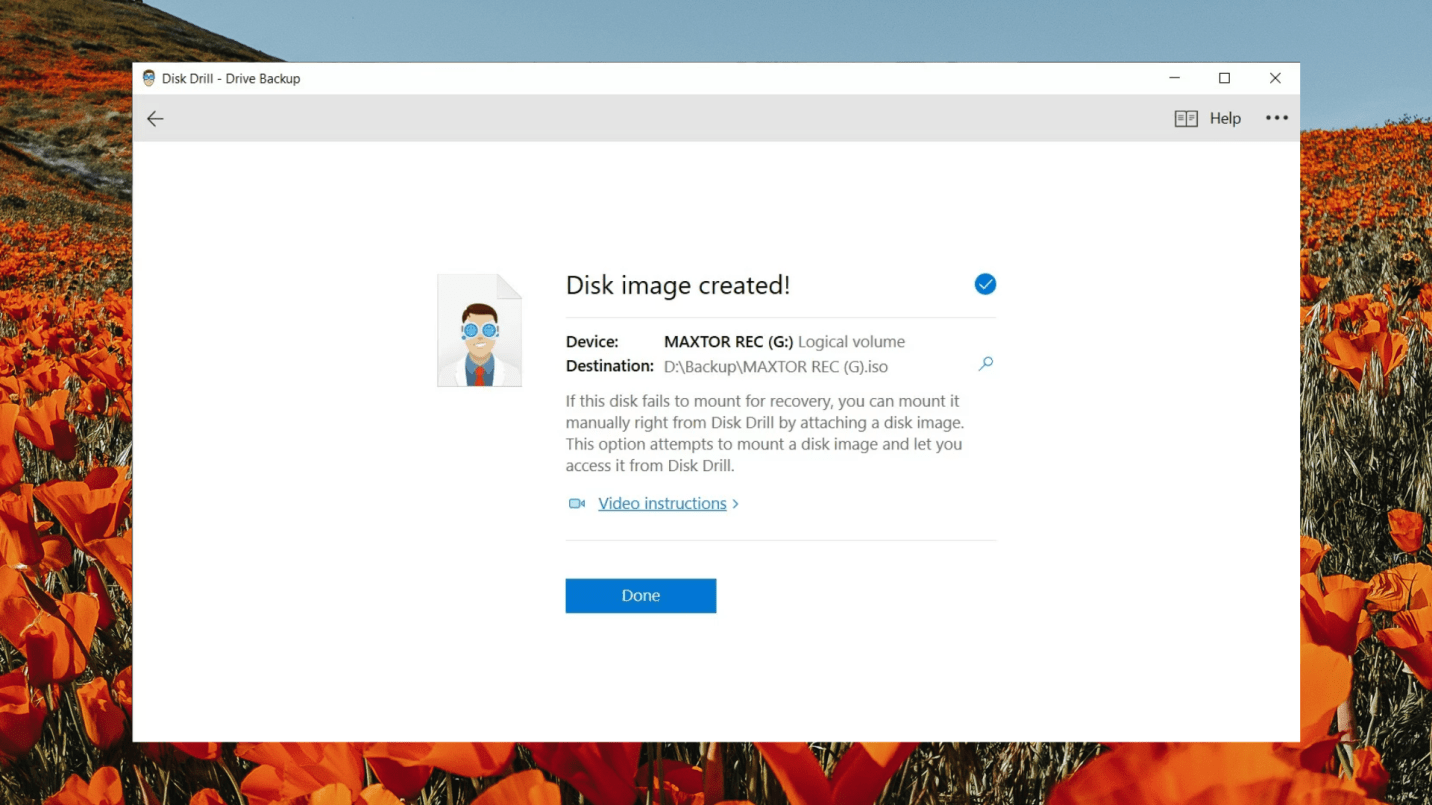

4. Start the backup process. Disk Drill will create an image file of your Maxtor drive. This image includes everything—visible files, hidden files, deleted data, and even empty space. It’s a full byte-for-byte copy of your drive.
5. Once the backup is complete, go back to the Data Recovery section in Disk Drill. To do this, click the Home 🏠 button next to Show in Explorer.

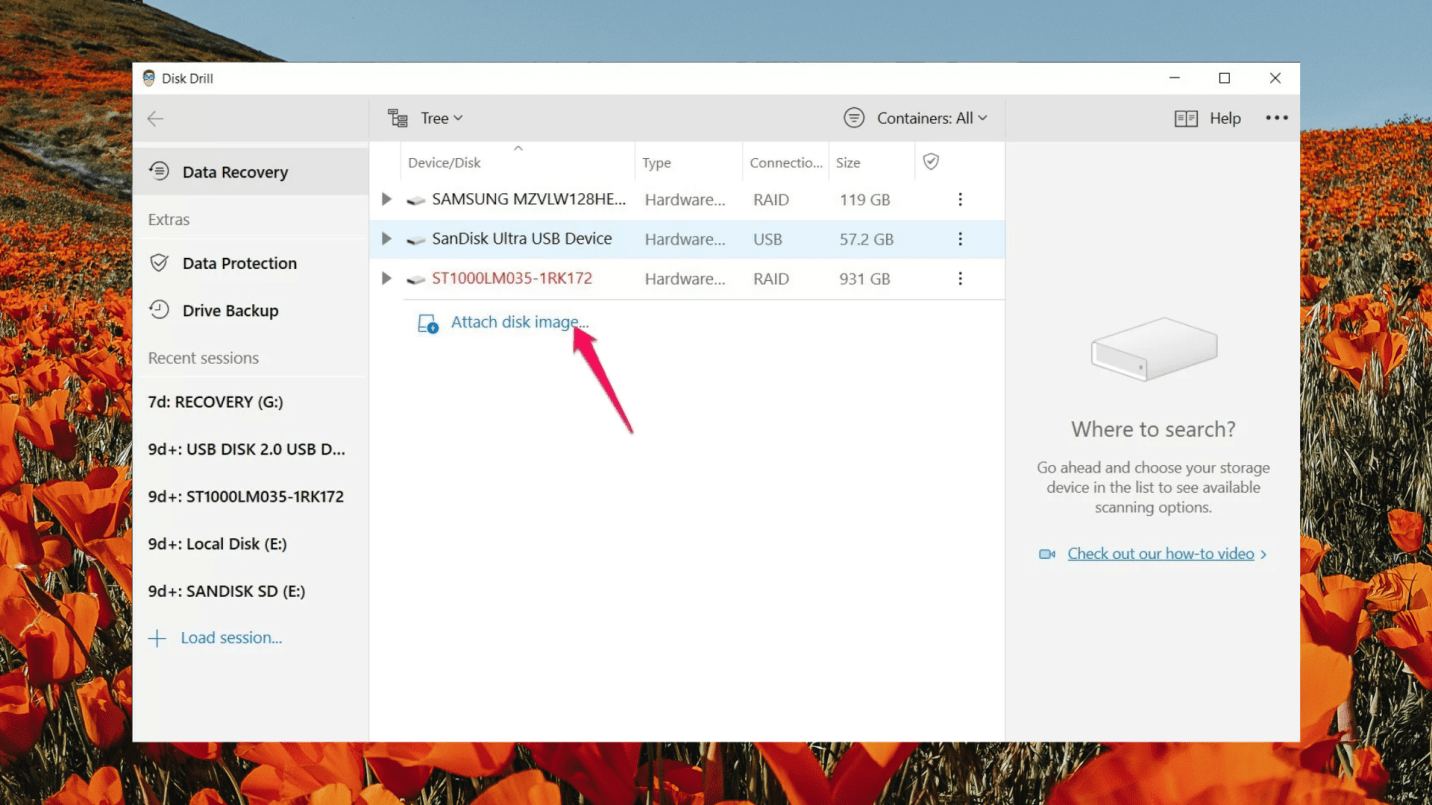

To scan the backup image, you’ll need to mount it first. At the bottom, you’ll see the option labeled Attach Disk Image. Click it and select the DMG backup file you just created.

Step #2: Scan Your Drive (or Its Image) for Recoverable Data

The reason Disk Drill is so effective lies in its sophisticated algorithms, which handle a variety of data loss scenarios with precision. It uses three powerful scanning modes—Quick Scan, Deep Scan, and Signature Scan—to handle all kinds of data recovery scenarios. Here’s a breakdown of what each mode does:

• Quick scan recovers files that were “recently deleted,” like those removed with Shift+Delete or emptied from the Recycle Bin. In these cases, the file system is still intact, and Quick Scan uses file table records to find and restore your files. File names and folder structures are usually preserved. It doesn’t matter what file types you’re recovering—it works for all of them.
• Deep scan is perfect for tougher cases like formatted drives or missing file systems. Deep Scan works when the file system has been replaced, turned into RAW, or corrupted.
• Signature scan works independently of the file system and looks for unique patterns (or “signatures”) to locate files. It’s especially useful for drives with severe corruption.

It’s very easy to recover deleted or inaccessible files from the Maxtor hard drive with Disk Drill. The process only takes a few clicks, and there’s no need to manually select scan modes or deal with anything complicated.

Just follow these steps, and you’ll have your files back in no time:

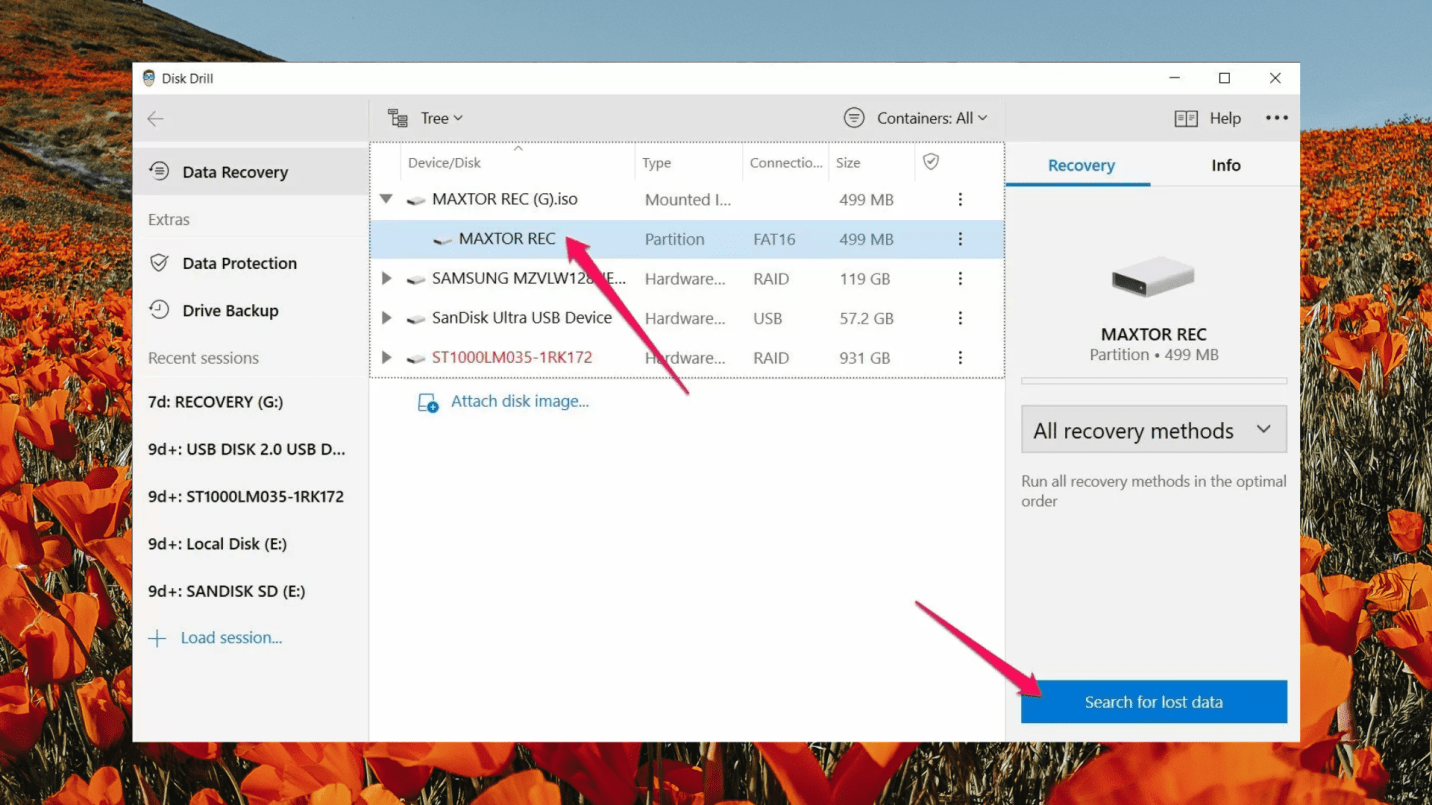

1. Open Disk Drill and select your Maxtor drive (or its mounted image) from the list of connected devices.
2. Click Search for lost data to begin the recovery process.

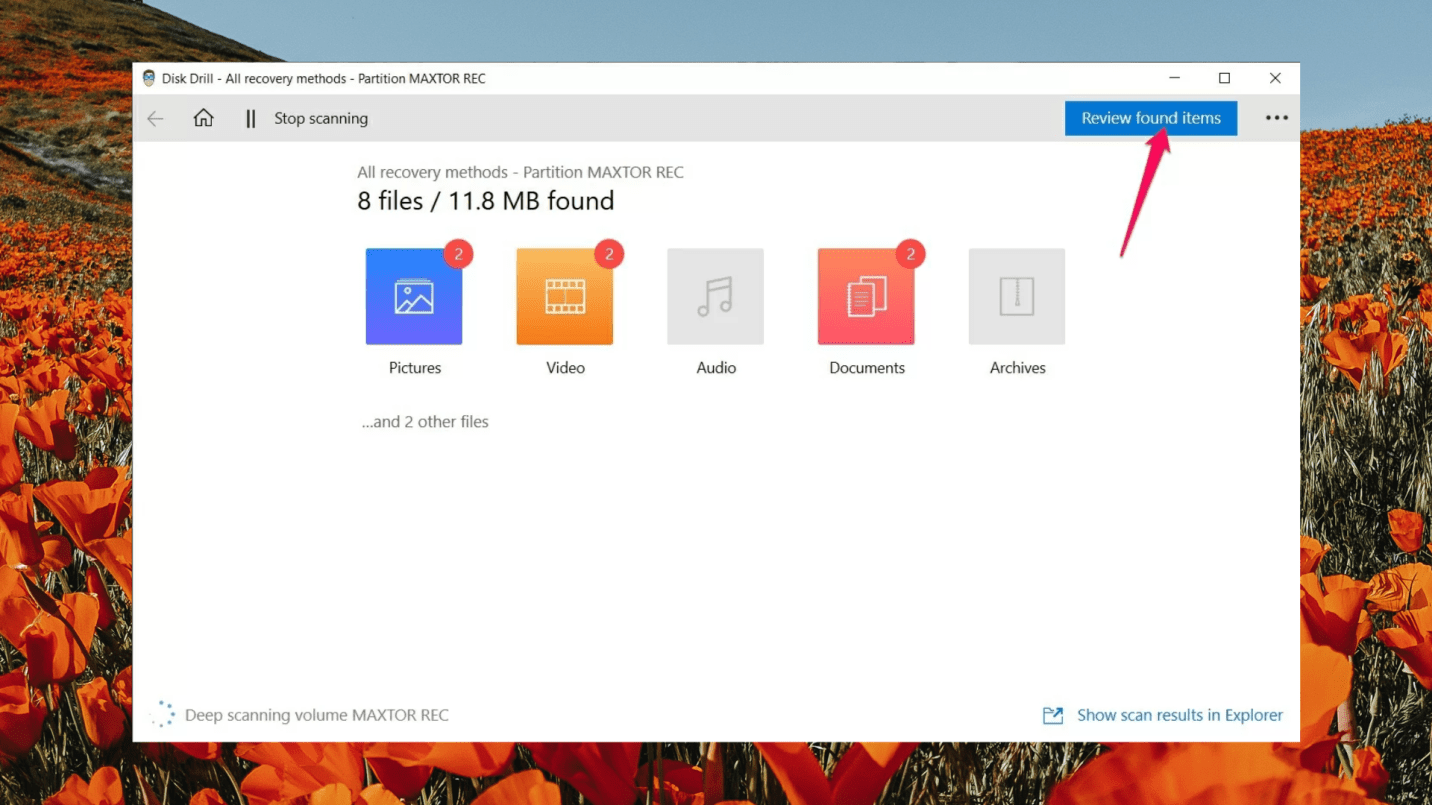

3. Disk Drill will automatically scan your drive, and you don’t have to wait for the scan to finish. Click Review found items at any point during the scan to browse the files that have already been detected.
4. Browse through the list of files to check for the ones you need. If you find your files early in the scan, you can start the recovery process immediately without waiting for the scan to complete.
5. Use the search bar in the top-right corner to filter files by name or type. For example, typing “.pdf” will help you find PDF documents, while “.zip” will show ZIP archives. You can also use the sidebar to navigate files by type, such as documents, videos, images, and so on.
6. Hover over a file name and click the eye icon to preview it. Disk Drill supports previews for all file types that your Windows system can open.

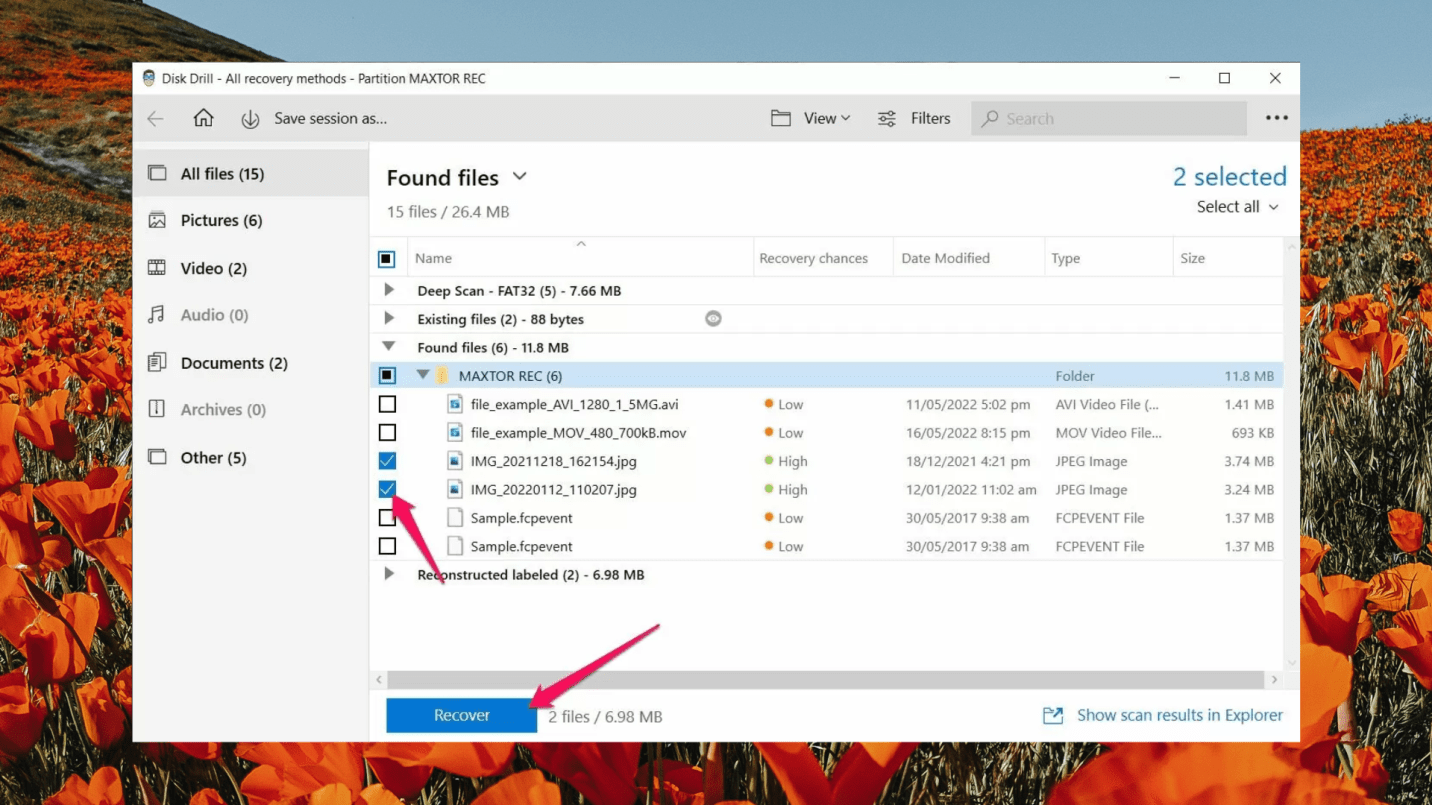

7. Use the checkboxes next to the files you want to recover to mark them for retrieval.

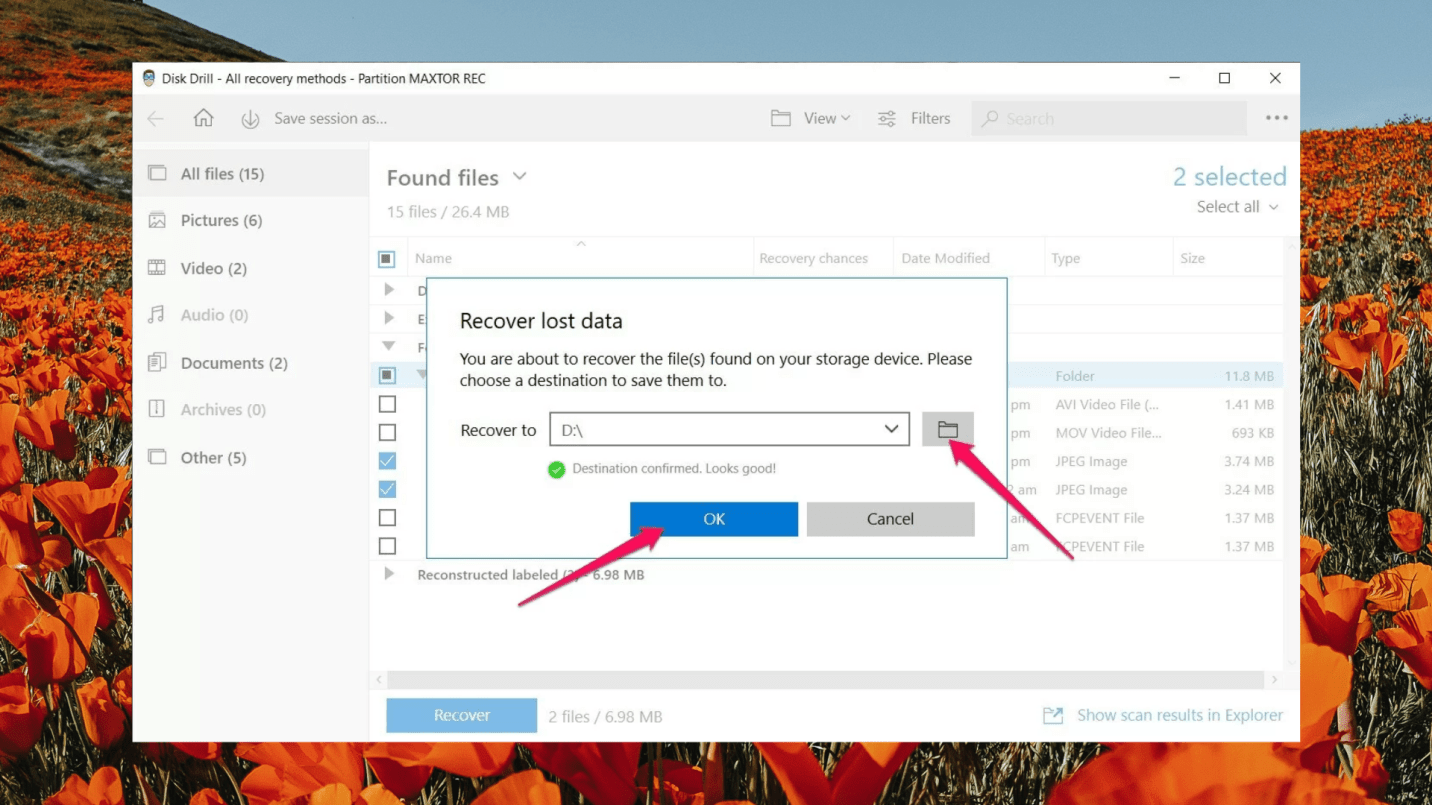

8. Click the Recover button and choose a destination where Disk Drill should save the recovered files. Always save these files to a different volume or drive to avoid overwriting any remaining data on your Maxtor drive.

How to Perform Maxtor Hard Drive Recovery

In this section, we’ll cover different methods for Maxtor hard drive recovery. The best approach depends on the specific issue. To make it easier, we’ll highlight which problems each method works for, so you can quickly find the solution you need.

Method #1: Check the Cables and Connectors

Sometimes, the issue isn’t with the drive itself but with the connection. Here’s what you can try.

For external Maxtor drives:

1. Inspect the USB cable for any visible issues, such as frayed wires or bent connectors. Even minor damage can disrupt the connection and prevent your computer from recognizing the drive.
2. Swap the USB cable with a new one or one you’ve tested with another device. A faulty cable is a common cause of external drives not showing up.
3. Plug the drive into a different USB port on your computer. If you’re using a desktop, try a port on the back of the PC, as these often provide more stable power.
4. Connect the drive to another computer to see if it works there. If the drive is recognized on a different system, the issue might lie with the original computer’s configuration or ports.

For internal Maxtor drives:

1. Open your computer case and inspect the SATA and power cables connected to the Maxtor drive. Make sure both ends of the cables are firmly plugged in and show no visible damage.
2. Replace the SATA and power cables with new ones if they appear worn out or damaged.
3. Disconnect the drive’s cables, clean the connectors, and plug them back in securely.
4. Move the SATA cable to a different port on the motherboard. Faulty or unreliable SATA ports can cause the drive to remain undetected.
5. Test the drive in another system or use a SATA-to-USB adapter to connect it externally. This can help determine if the issue is with the drive itself or your current system.

Method #2: Rescan Your Drive in Disk Management

It’s possible that your computer might have gotten interrupted before establishing a connection to your hard drive.

To fix this issue, try rescanning your drive in Disk Management. Here’s how:

1. Press Win + X and click Disk Management.

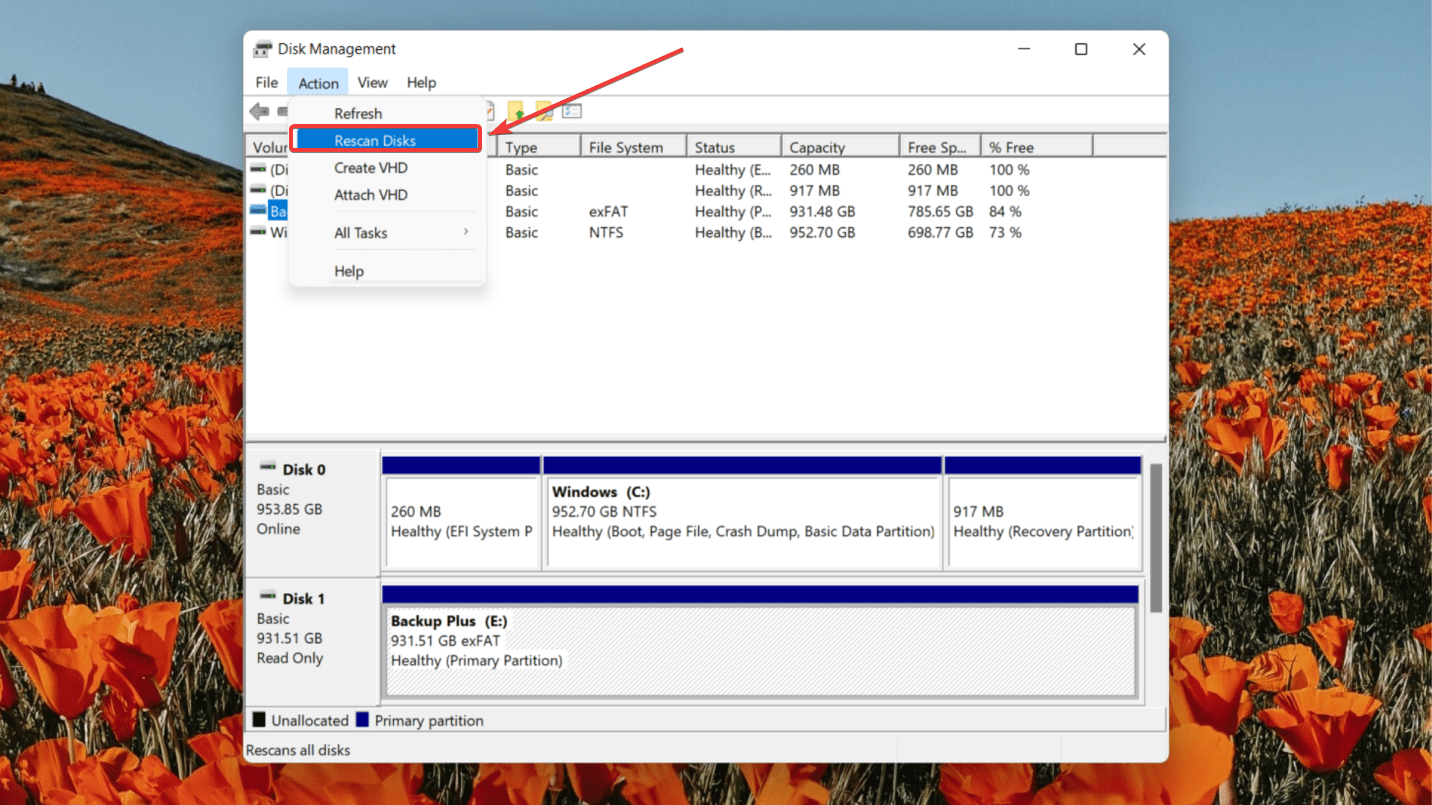

2. Click Action in the top menu of Disk Management, then select Rescan Disks from the dropdown. This forces the system to detect all connected drives again.

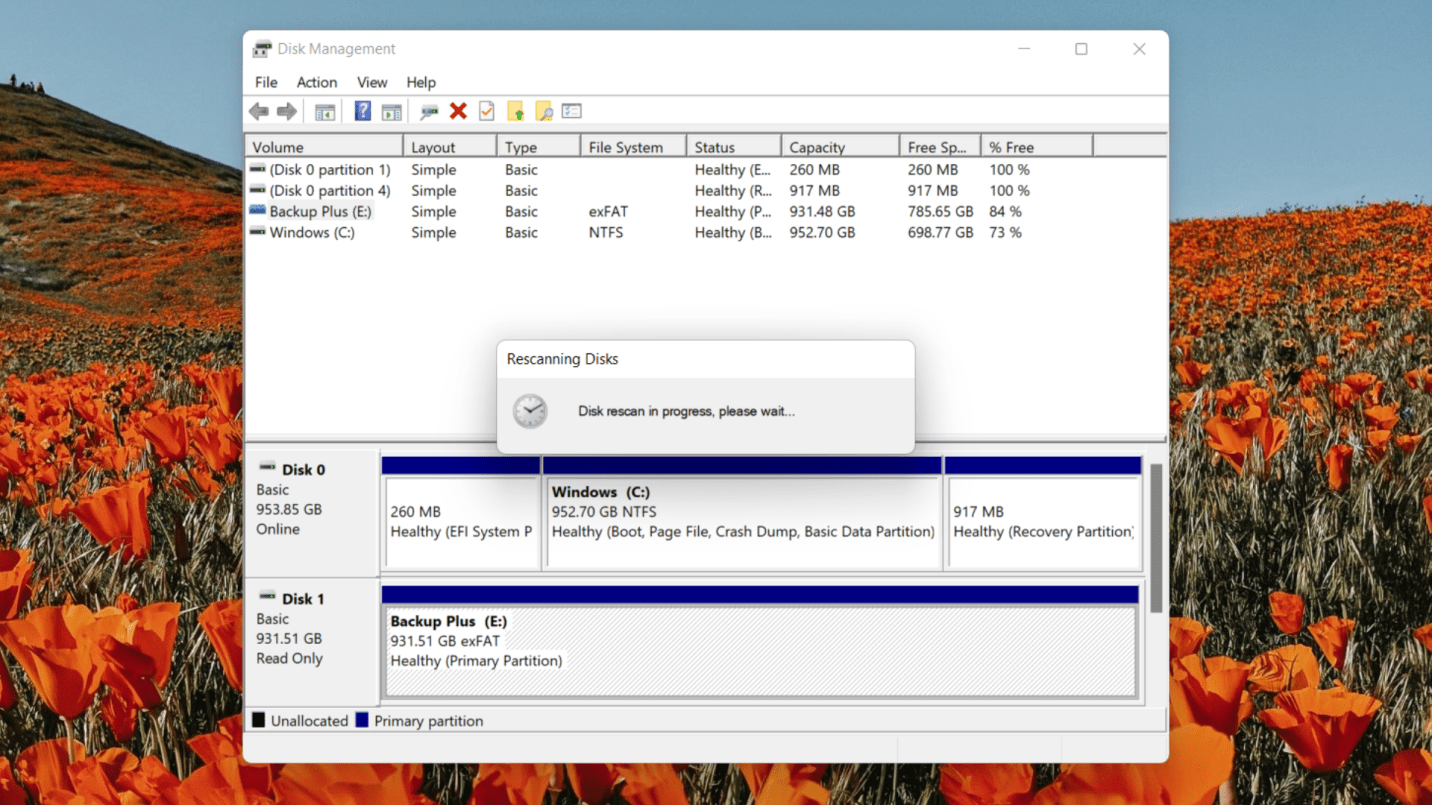

3. Wait for the rescan process to complete. This might take a minute or two

Method #3: Assign or Change the Drive Letter

Drives without a letter assigned won’t show up in File Explorer, even though the system detects them. Additionally, drive letter conflicts can sometimes prevent the drive from being accessible. You can fix this issue quickly in Disk Management. Here’s how:

1. Open Disk Management.

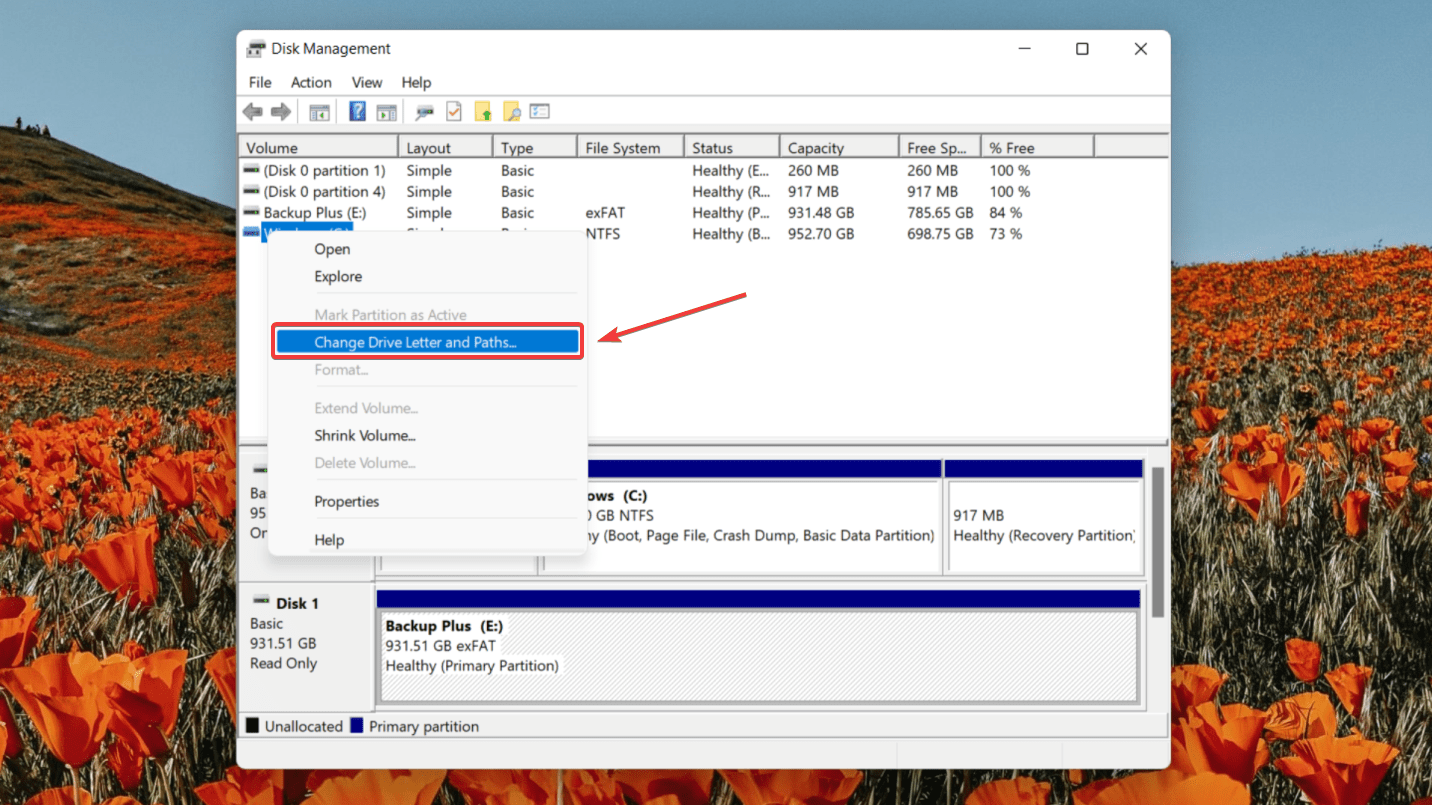

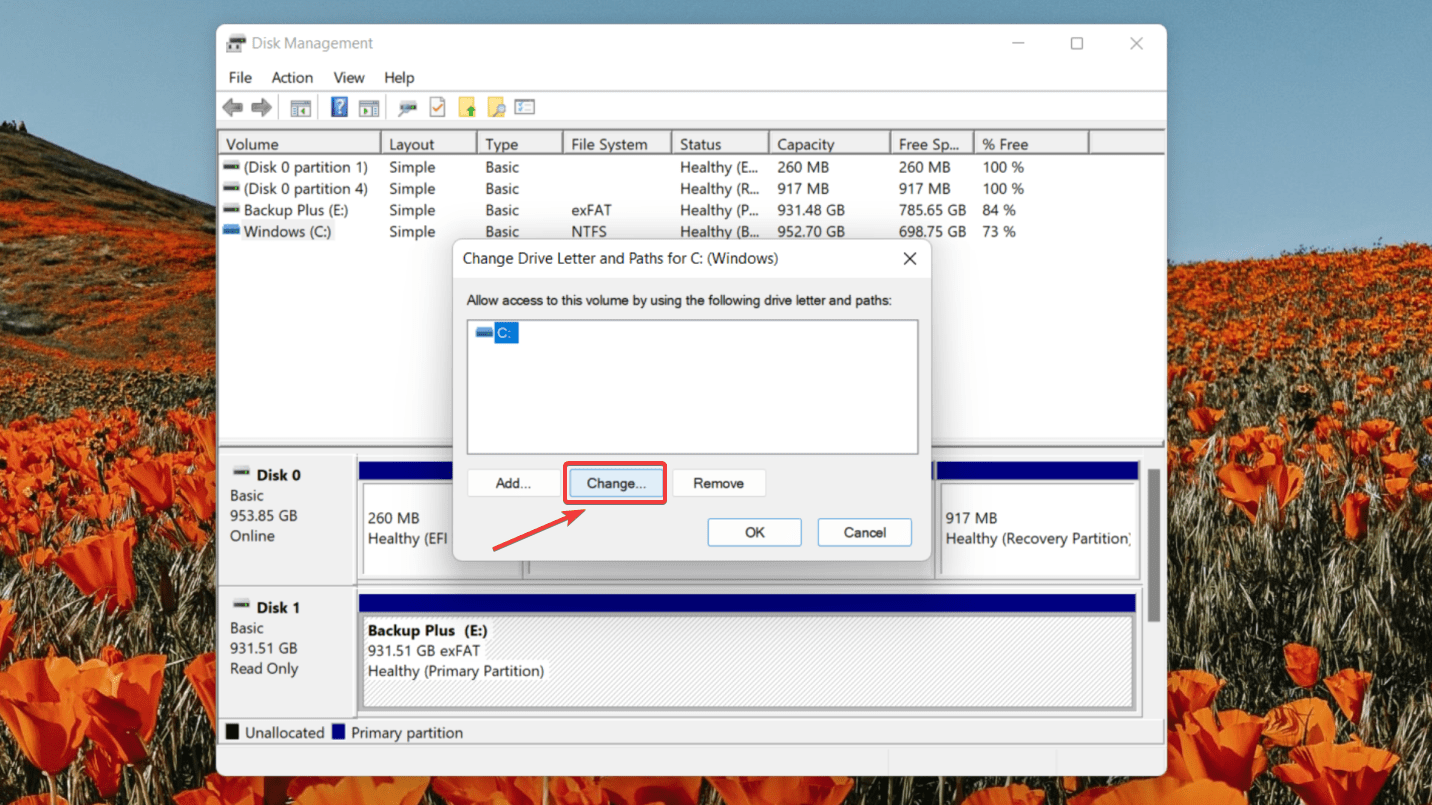

2. Right-click your Maxtor drive and choose Change Drive Letter and Paths.

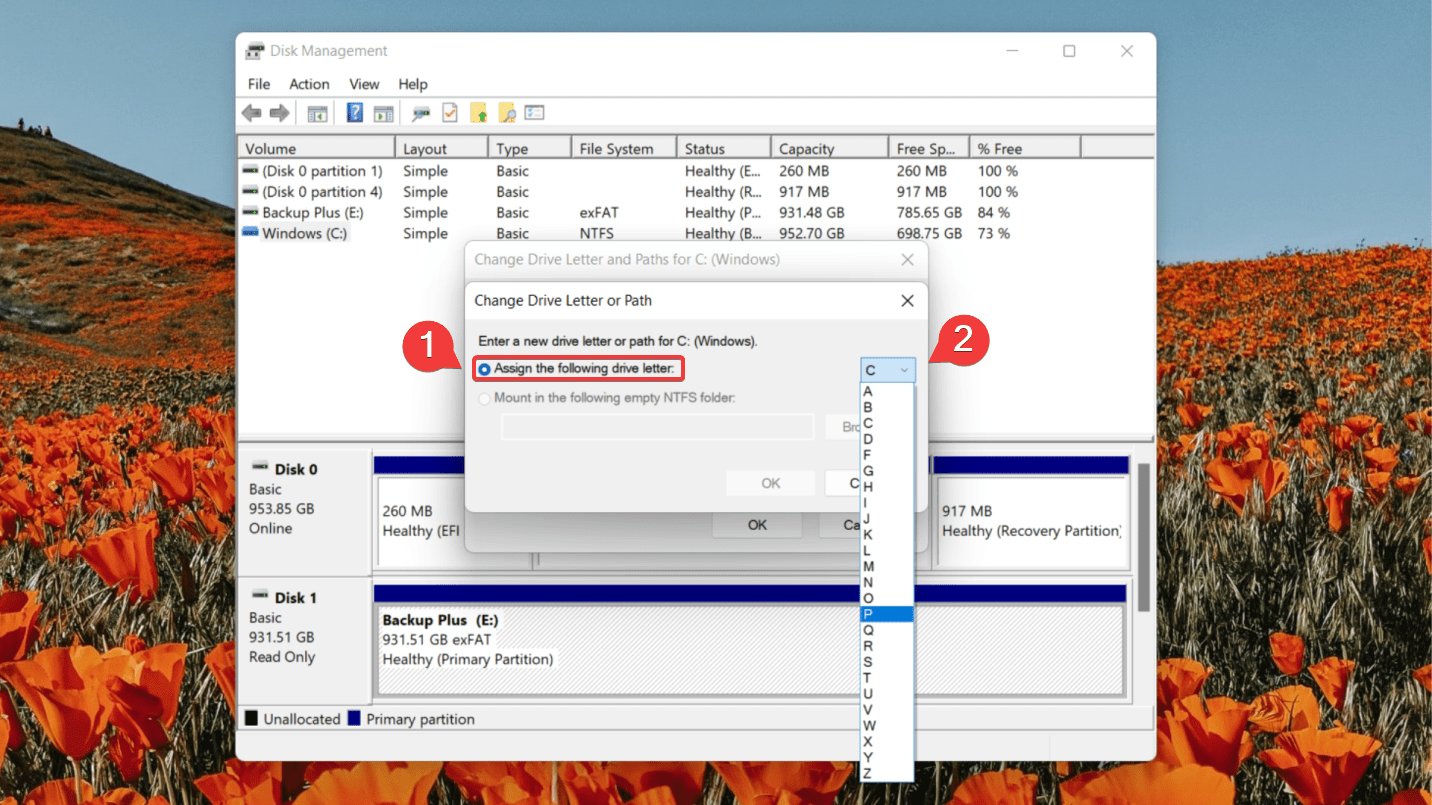

3. In the pop-up box, click Add if the drive doesn’t have a letter yet. If it already has one, click Change to assign a new letter and avoid potential conflicts.
4. Pick a new letter from the dropdown menu. Go for something not in use, like “E” or “F,” to keep things simple.
5. Hit OK to save your changes. Windows will update the configuration and apply the new letter to your drive.
6. Open File Explorer to check if the drive is now visible. The new or assigned letter should fix the issue and make the drive accessible.

Method #4: Run CHKDSK

CHKDSK is a built-in Windows tool that scans your drive for issues and fixes many common non-physical problems. Here’s what it can do:

• It checks your drive for soft bad sectors, which are caused by things like power outages or improper shutdowns. CHKDSK fixes these by relocating data to undamaged areas of the drive.
• It identifies hard bad sectors, which are caused by physical damage. While it can’t repair these, it marks them as unusable so no new data gets written to those spots.
• It cleans up file system errors, such as broken file references, lost clusters, and directory problems.
• It fixes metadata mismatches, like incorrect file names, sizes, or other file details, so information on your drive is accurate and aligned.

How to run CHKDSK:

1. Press Win + S, type Command Prompt, and right-click it. Select Run as Administrator to open it with the permissions needed to run CHKDSK.
2. Type this command and press Enter: chkdsk E: /r (Replace E with the letter assigned to your Maxtor drive in File Explorer)
3. If the drive is in use, Windows will ask if you want to schedule CHKDSK for the next restart. Type Y and hit Enter.
4. Restart your PC. CHKDSK will scan the drive and repair any errors it finds.
5. Once CHKDSK finishes, it will show a summary of the fixes. Check File Explorer to see if your Maxtor drive is back to normal.

Method #5: Run VictoriaHDD

VictoriaHDD is a powerful diagnostic and repair tool for hard drives. Here’s what it can do:

• It scans the surface of your drive to locate bad sectors, identifying areas that are slow or completely unreadable.
• VictoriaHDD tries to recover or move data from bad sectors to healthy parts of the drive and marks damaged sectors to prevent new data from being written there.
• It provides detailed info about your drive’s condition, including S.M.A.R.T. data and performance stats, so you know what’s going on under the hood.

How to use VictoriaHDD:

1. Go to the official VictoriaHDD website and download the latest version. Once downloaded, extract the files to a folder. VictoriaHDD doesn’t need installation—you can run it straight from the executable file.
2. Right-click the executable file and choose Run as Administrator to give it full access to your drive.
3. From the list of connected drives, select your Maxtor hard drive.
4. Go to the Tests tab and hit Scan to begin analyzing the drive’s sectors. As the scan progresses, VictoriaHDD will display a map of your drive’s health (it marks sectors as good, slow, or bad).
5. If bad sectors are found, use the Remap option to reallocate them. This tells the system to avoid writing data to those damaged areas.

Method #6: Use TestDisk to Fix Partition Problems

TestDisk is a free, open-source tool that can:

• Recover lost or deleted partitions.
• Rebuild damaged partition tables.
• Repair FAT, NTFS, and ext2/ext3 file systems.
• Fix boot sectors on FAT and NTFS volumes.

It’s a solid choice if your Maxtor drive has partition issues. That said, like with most methods in this article, it’s smart to back up any important data first. TestDisk is reliable, but things can go sideways during recovery, so a backup will keep your data safe.

Be ready—TestDisk only runs in a command-line interface, so it’s not as user-friendly as some other tools, so follow our guide closely:

1. Head to the official TestDisk website and download the latest version. Extract the files to a folder on your computer. TestDisk doesn’t require installation, so you’ll run it directly from the extracted files.
2. Open the folder with the extracted files and double-click testdisk_win.exe. Right-click the file and select Run as Administrator to make sure TestDisk has full access to your drive.
3. Select the Create/No Long option and hit Enter.
4. Once TestDisk starts, it will display a list of connected drives. Use the arrow keys to highlight your Maxtor drive and press Enter. Double-check your selection to be sure you’ve picked the right drive.
5. TestDisk will attempt to detect your drive’s partition table type automatically (e.g., Intel, EFI GPT). In most cases, stick with the default option and press Enter to proceed.
6. Select Analyze from the menu to scan your Maxtor drive for existing and lost partitions.
7. When the scan completes, TestDisk will display a list of detected partitions. Look for the one you’re trying to recover or repair. Highlight it and press Enter to select it.
8. If the partition appears correct, choose the option to Write the new partition structure back to the drive. TestDisk will prompt you to confirm before any changes.
9. After writing the partition, restart your computer to finalize the changes.
10. Open File Explorer to see if your Maxtor drive is now accessible and your files are intact.

Method #7: Format Your Maxtor Drive

Formatting is usually the last resort for HDDs, but it’s a highly effective way to fix all logical (non-physical) problems with a drive. Here’s what it does:

• It replaces the damaged file system with a fresh one, so the drive can store and organize data correctly again.
• It clears out old storage data and resets the drive for new use.
• It identifies bad sectors (with full format) and blocks them off so they can’t be used again.

How to format your Maxtor drive:

1. Open Disk Management.
2. Find your drive in the list.
3. Right-click the drive and select Format from the context menu.
4. In the options window, select a file system: NTFS is best for Windows-based systems, and exFAT is compatible with many systems like Windows, macOS, and Linux.
5. In the Volume Label field, enter a name for your Maxtor drive (optional).
6. You have the option to Quick Format or perform a Full Format. Here’s the difference between the two: Quick format skips the bad sector scan—it just clears the file system, so the drive looks empty, but the data’s still recoverable. Full format takes longer since it erases and overwrites everything and checks for bad sectors.
7. Hit OK, and Windows will format the drive.

Method #8: Contact Your Local Service Center

If you’re unable to repair the Maxtor hard drive using disk repair software or tools mentioned above, you can reach out to a local data service center.

Hard drives typically last around 3 to 5 years on average, and since Maxtor stopped manufacturing drives in 2006, there’s a chance your drive might be beyond recovery, especially if it’s suffered physical damage. Keep in mind, though, that professional data recovery services aren’t cheap—they can sometimes cost more than a brand-new hard drive. If your data is truly irreplaceable, it might be worth the investment, but ultimately, the decision is yours.
